ʻO ke alakaʻi laina PHGH, ʻo ia hoʻi, ʻo ia hoʻi, ʻo ia hoʻi, ke alakaʻi laina ʻano haʻahaʻa kaumaha i hoʻolālā ʻia me nā lālani ʻehā poʻe arc arc hoʻokahi e hiki ke amo i ka ukana kaumaha, ke hoʻohālikelike ʻia me nā ʻano kuʻuna lm alakaʻi. ʻO nā hiʻohiʻona laina laina laina me ka hoʻouka like ʻana mai nā ʻaoʻao āpau a me ka hiki ke hoʻoponopono ponoʻī iā ia iho, hiki ke hōʻemi i ka hewa kau ʻana a hoʻokō i ka pae kiʻekiʻe.
He lōʻihi ke ola lawelawe ʻana o ke alakaʻi linear square, ʻenehana nani a me ka maikaʻi.
No ka moʻo PHGH25CA / PHGW25CA, hiki iā mākou ke ʻike i ke ʻano o kēlā me kēia code penei:
E lawe i ka nui 25 no ka laʻana:
ʻano poloka a me ke kaʻaahi
ʻAno | Hoʻohālike | ʻAno Poka | Kiʻekiʻe (mm) | Ke kau ʻana o ke kaʻaahi mai luna mai | Loihi Kaʻaahi (mm) | |
Poloka huinaha | PHGH-CAPHGH-HA | 26 ↓ 76 | 100 ↓ 4000 | |||
Palapala noi | ||||||
|
|
Loaʻa i ke alakaʻi paheʻe laina i ka hōʻailona laser engraving a me ke kumu hoʻohālike, nā pōpō kila kiʻekiʻe i lawe ʻia mai, ʻoi aku ka mānoanoa o nā wepa lepo ʻelua.
He hoʻolālā kūpono ko Linear rail bearing block i loaʻa iā ia ka mea hoʻopaʻa pōpō kila e pale ai i ka hāʻule ʻana o nā pōpō a mālama i ka hana maʻemaʻe.
ʻO ke kaʻa laina pololei he palahalaha a maʻemaʻe ka ʻokiʻoki ʻana, ʻaʻohe burrs, raceway maʻemaʻe e hōʻoia i ka neʻe ʻana o ka laina laina.

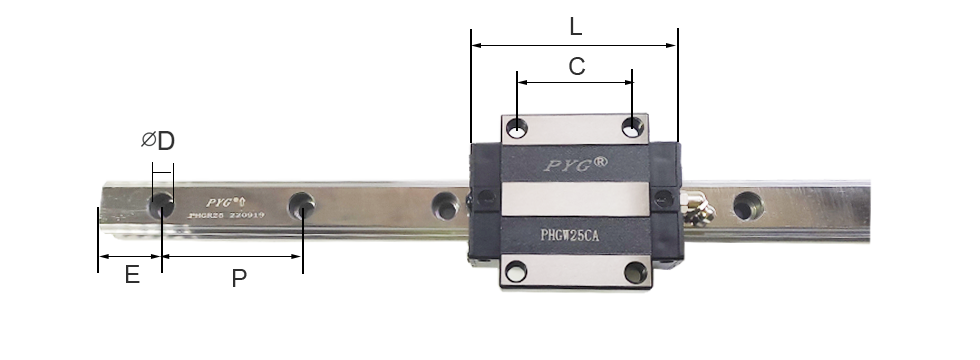

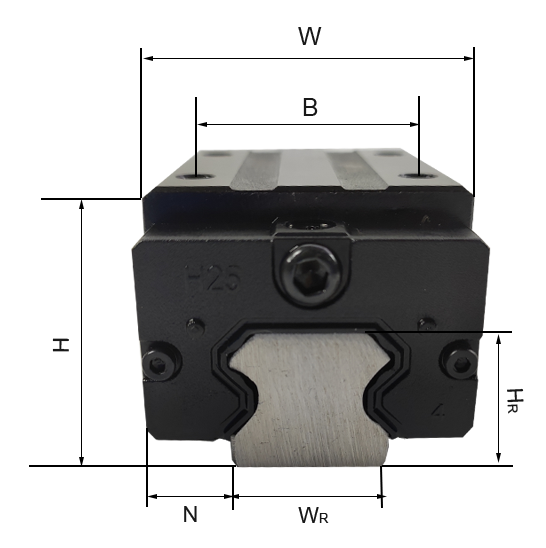

Hoʻohālike | Ana o ka Hui (mm) | Nui poloka (mm) | Ana o ke Kaʻaahi (mm) | Ka nui o ka bolt kauʻanano ka hao | Ka helu hoʻouka dynamic kumu | Ka helu hoʻouka paʻa kumu | kaumaha | |||||||||
Palaka | Kaʻaahi | |||||||||||||||
H | N | W | B | C | L | WR | HR | ʻO D | P | E | mm | C (kN) | C0(kN) | kg | Kg/m | |
PHGH25CA | 40 | 12.5 | 48 | 35 | 35 | 84 | 23 | 22 | 11 | 60 | 20 | M6*20 | 26.48 | 36.49 | 0.51 | 3.21 |
PHGW25CA | 36 | 23.5 | 70 | 57 | 45 | 84 | 23 | 22 | 11 | 60 | 20 | M6*20 | 26.48 | 36.49 | 0.59 | 3.21 |
PHGW25HA | 36 | 23.5 | 70 | 57 | 45 | 104.6 | 23 | 22 | 11 | 60 | 20 | M6*20 | 32.75 | 49.44 | 0.8 | 3.21 |
PHGW25CB | 36 | 23.5 | 70 | 57 | 45 | 84 | 23 | 22 | 11 | 60 | 20 | M6*20 | 26.48 | 36.49 | 0.59 | 3.21 |
PHGW25HB | 36 | 23.5 | 70 | 57 | 45 | 104.6 | 23 | 22 | 11 | 60 | 20 | M6*20 | 32.75 | 49.44 | 0.8 | 3.21 |
PHGW25CC | 36 | 23.5 | 70 | 57 | 45 | 84 | 23 | 22 | 11 | 60 | 20 | M6*20 | 26.48 | 36.49 | 0.59 | 3.21 |
PHGW25HC | 36 | 23.5 | 70 | 57 | 45 | 104.6 | 23 | 22 | 11 | 60 | 20 | M6*20 | 32.75 | 49.44 | 0.8 | 3.21 |
1. Ma mua o ke kau ʻana i ke kauoha, e ʻoluʻolu e hoʻouna mai iā mākou i ka nīnau, e wehewehe i kāu mau koi;
2. ʻO ka lōʻihi maʻamau o ke ala alakaʻi laina mai 1000mm a 6000mm, akā ʻae mākou i ka lōʻihi i hana ʻia;
3. ʻO ke kala poloka ke kala a me ka ʻeleʻele, inā makemake ʻoe i ke kala maʻamau, e like me ka ʻulaʻula, ʻōmaʻomaʻo, uliuli, loaʻa kēia;
4. Loaʻa iā mākou ka MOQ liʻiliʻi a me ka laʻana no ka hoʻāʻo maikaʻi;
5. Inā makemake ʻoe e lilo i ʻelele no mākou, e ʻoluʻolu e kelepona iā mākou +86 19957316660 a i ʻole e hoʻouna mai iā mākou i leka uila;
