Linear guide rail is mainly composed of slide block and guide rail, and the slide block is mainly used in sliding friction guide rail. Linear guide , also known as line rail, slide rail, linear guide rail, linear slide rail, used for linear reciprocating motion occasions, and can bear a certain torque, can achieve high-precision linear motion under high load. In the mainland, it is called linear guide rail, Taiwan is generally called linear guide rail or linear slide rail.
- The methods of storage of linear guide way
When storing the guide rail, ensure that it is coated with anti-rust oil and sealed in the specified envelope, and placed horizontally, and avoid high temperature, low temperature and high humidity environment. The ambient temperature should not exceed 80 ° C, and the instantaneous temperature should not exceed 100 ° C.
(1) Please be careful,the slider and rail may fall due to their own weight after tilting.
(2) Please pay attention to the knock or fall slide, even if the outside view is not damaged, but may cause functional loss.
(3) Don’t disassemble the slider by yourself, or it may cause foreign matter to enter or adversely affect the assembly accuracy.
(4) The PYG guide rail should be placed in a room at room temperature.
(5) The PYG rail should be brushed with some anti-rust oil.

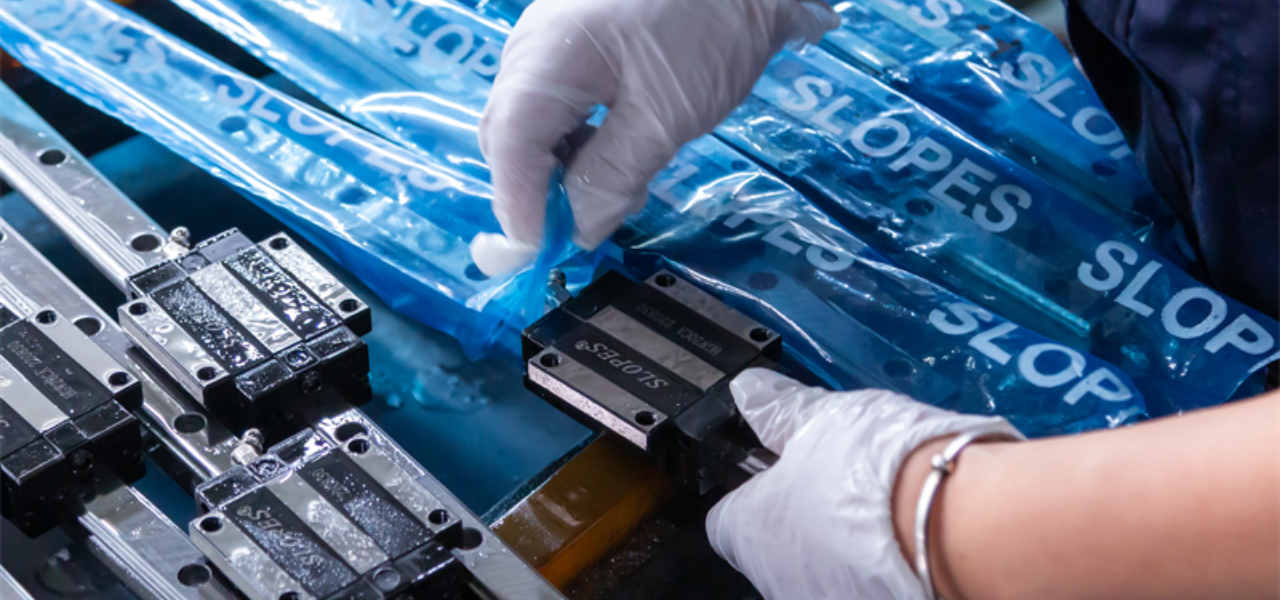

(6) In order to prevent volatile grease, a film should be wrapped on the outside.
(7)Place put the guide rail on top of the object instead of stacking it underneath.
2.The lubrication of linear guide rail
(1) Please wipe the anti-rust oil first and then inject lubricating oil (grease) for use.
(2) Don’t mix lubricating oil (grease) with different properties.
(3) It will be different due to different installation methods When lubricating oil is used.
The function of linear guide rail movement is to support and guide the moving parts, according to the given direction to do reciprocating linear movement. According to the friction properties, linear motion guide can be divided into sliding friction guide, rolling friction guide, elastic friction guide, fluid friction guide and so on. Linear bearings are mainly used in automated machinery, such as machine tools imported from Germany, bending machines, laser welding machines, etc., of course, linear bearings and linear shafts are used together. For example, linear guides are mainly used in mechanical structures with high precision requirements, and there is no intermediate medium between the moving components and fixed components of linear guides, and rolling steel balls are used.
