PEGW Series Low Profile Linear Guide

PEGW-SA / PEGW-CA  lm guideways types mean low profile flange balls type linear guide, S refers to medium load and C means heavy load capacity, A means bolt mounting from top. Low friction linear slide designed with four row steel balls in arc groove structure which has high load capacity in all directions, high rigidity, self-aligning, can reduce the installation error of mounting surface, low friction linear bearings are widely used for small equipment .

1. Rolling circulation system
Block, Rail, End Cap, Steel Balls and Retainer
2. Lubrication system
Grease Nipple and Piping joint
3. Dust protection system
Scraper, End Seal, Bottom Seal, Bolt Cap, Double Seals

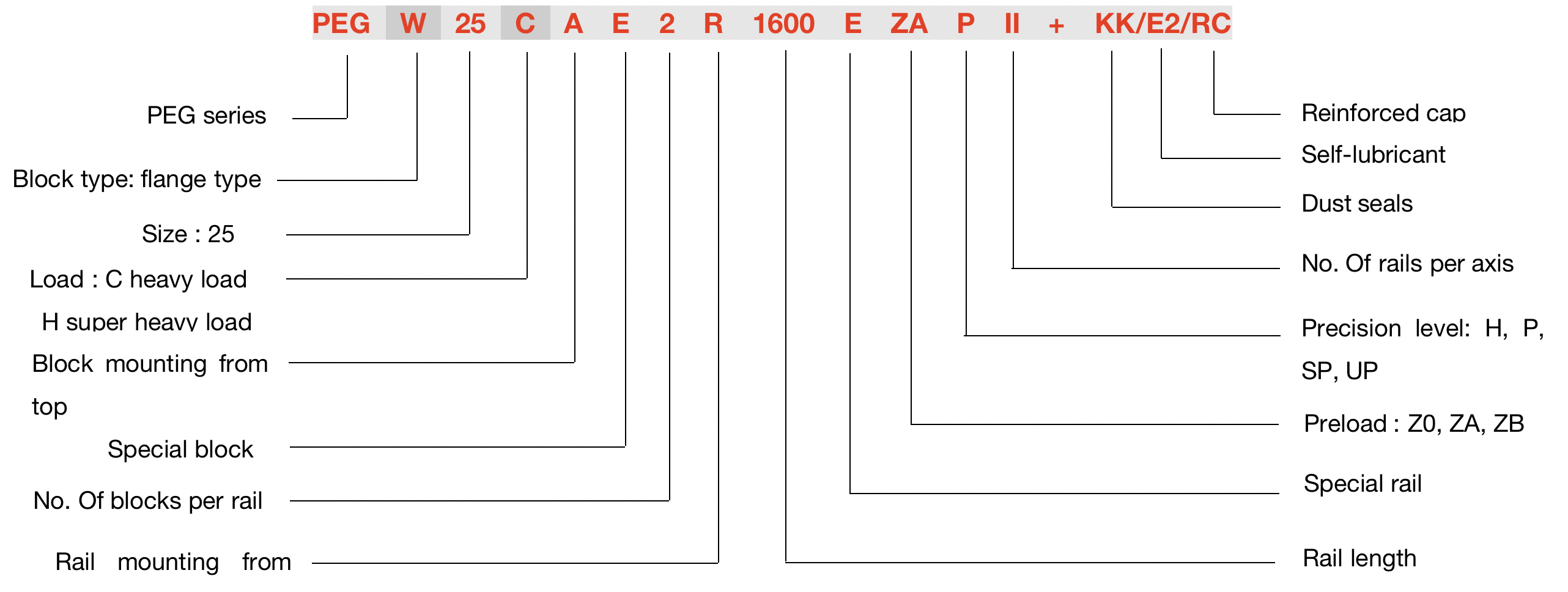

For PEGW-SA / PEGW-CA series, we can know the definition of each code as follows:

Take size 25 for example:

PEGW-SA / PEGW-CA block and raitype

Type	Model	Block Shape	Height (mm)		RaiMounting from Top	RaiLength (mm)
Flange block	PEGW-SAPEGW-CA		24 ↓ 48			100 ↓ 4000
Application
Automation system Heavy transportation equipment CNC processing machine Heavy cutting machines				CNC Grinding machines Injection molding machine Electric discharge machines Big gantry machines

linear rail guide with bearing block

PYG ^® linear rail and carriage are interchangeable , the slide block or guide rail or even the linear guide group can be replaced respectively , the machine platform can operate high precision linear motion smoothly, which can reduce cost effectively for enterprises.

linear motion systems

PYG ^® linear motion slides has equipped with grease nipple, can be injected into grease by oil gun or can install special tubing joint to supply oil lubrication automatically. This can prolong the service life of linear motion slide rails.

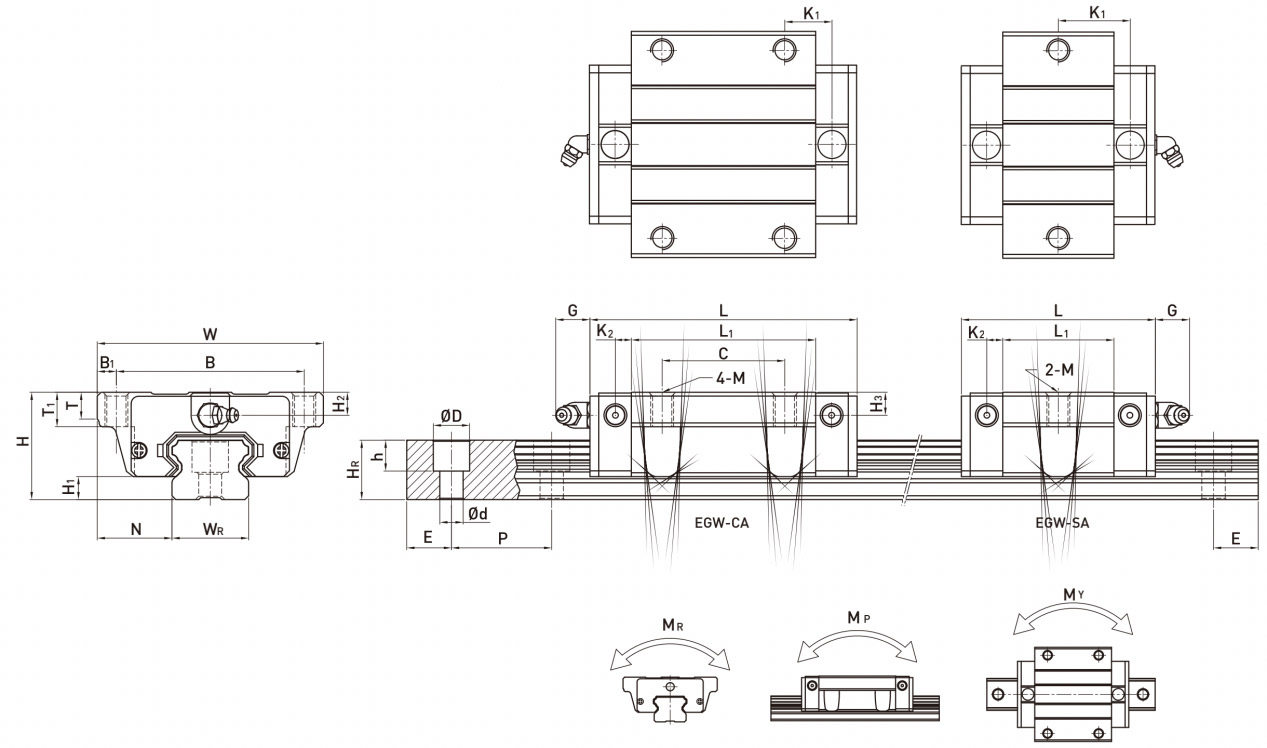

Dimensions

Complete dimensions for all precision linear bearings size see below table or download our catalog:

Complete dimensions for all size see below table or download our catalog:
