PQH series recirculating linear slide guide bearing Lm rail and block

Short Description:

PQH series rail guide bearing also based on four row circular arc contact, due to it’s SynchMotion TM technology, PQH series linear slide unit can offer smooth movement, superior lubrication, quieter operation and longer running life, so this precision linear slide is suitable for high speed, low noise and reduced dust generation work condition.


  • Model Type: PQH
  • Rail Material: S55C
  • Block Material: 20 CRmo
  • Sample: available
  • Delivery time: 5-15 days
  • Precision level: C , H, P, SP, UP
    • Whatsapp

    Product Detail

    Product Tags

    product description

    PQH Series recirculating linear bearings

    PQH series rail guide bearing also based on four row circular arc contact, due to it’s SynchMotion TM technology, PQHH series linear slide unit can offer smooth movement, superior lubrication, quieter operation and longer running life, so this precision linear slide is suitable for high speed, low noise and reduced dust generation work condition.

    Features of PQH series linear slide rail and carriage

    (1) low noise
    By using SynchMotionTM technology, makes the balls arranged evenly and equally spaced， due to the elimination of contact between rolling elements, collision noise and sound levels are drastically reduced.

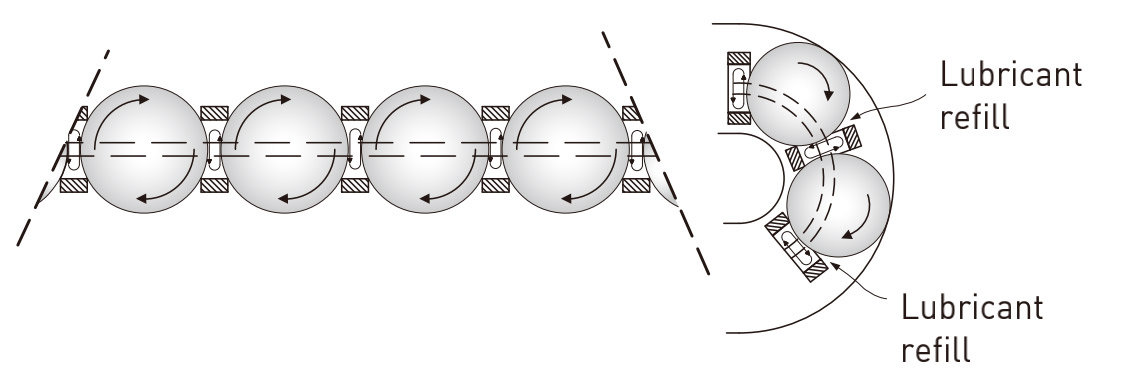

    (2) self-lubrication
    Because of special lubrication path design, the lubricant of the partition storage space can be refilled. Therefore the frequency of lubricant refilling can be decreased.

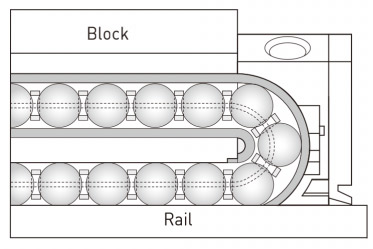

    (3) smooth movement

    Due to synchronous connector which connect the linear slide rail steel balls in a unified cycle, so when the linear slide guide start moving, all balls start almost simultaneously and no collision between balls, also can reduce the friction resistance.

    (4) High speed performance

    Synchronous connector linear slide design realize the ring contact between steel balls and connector, lower the friction as well as speed the movement.



    img-4
    img-5
    img-3

    For PQH series linear slide assembly, we can know the definition of each code as follows:

    Take size 25 for example:

    pqh 20 guideway

    Complete Testing Process

    We must ensure the lm guide rail quality and through the complete testing.

    Source Control

    From raw material processing to finished lm guide assembly, we insist on tracking the whole process to make customers rest assured.

    tech-info

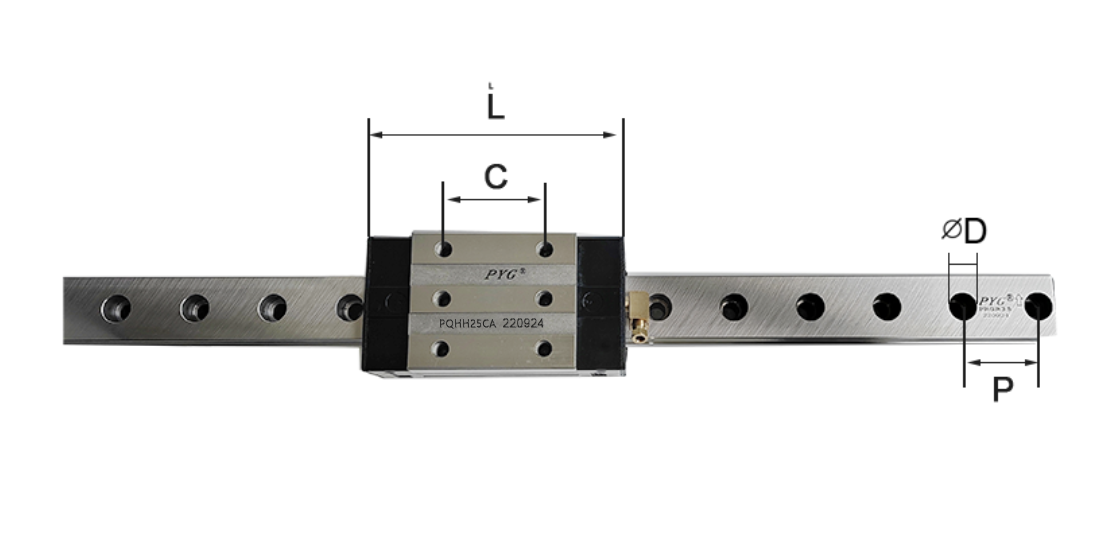

    Dimensions

    Complete dimensions for all linear slides heavy duty size see below table or download our catalog:

    linear motion28
    linear guideway
    Model Dimensions of Assembly (mm) Block size (mm) Dimensions of Rail (mm) Mounting bolt size for rail Basic dynamic load rating Basic static load rating weight
    Block Rail
    H N W B C L WR  HR  D   P   E   mm C (kN) C0(kN) kg Kg/m
    PQHH15CA 28 9.5 34 26 26 61.4 15 15 7.5 60 20 M4*16 17.94 19.86 0.18 1.45
    PQHH20CA 30 12 44 32 36 76.7 20 17.5 9.5 60 20 M5*16 30 33.86 0.29 2.21
    PQH20HA 50 91.4 35.7 42.31 0.38 2.21
    PQHH25CA 40 12.5 48 35 35 83.4 23 22 11 60 20 M6*20 41.9 48.75 0.5 3.21
    PQHH25HA 50 104 50.61 60.94 0.68 3.21
    PQHH30CA 45 16 60 40 40 97.4 28 26 14 80 20 M8*25 58.26 66.34 0.87 4.47
    PQHH30HA 60 120.4 70.32 88.45 1.15 4.47
    PQRH35CA 55 18 70 50 50 113.6 34 29 14 80 20 M8*25 78.89 86.66 1.44 6.3
    PQRH35HA 72 139.4 95.23 115.55 1.9 6.3
    PQRH45CA 70 20.5 86 60 60 139.4 45 38 20 105 22.5 M12*35 119.4 135.42 2.72 10.41
    PQRH45HA 80 171.2 144.13 180.56 3.59 10.41
    Model Dimensions of Assembly (mm) Block size (mm) Dimensions of Rail (mm) Mounting bolt size for rail Basic dynamic load rating Basic static load rating weight
    Block Rail
    H N W B C L WR  HR  D   P   E   mm C (kN) C0(kN) kg Kg/m
    PQHW15CA 24 16 47 38 30 61.4 15 15 7.5 60 20 M4*16 17.94 19.86 0.17 1.45
    PQHW20CA 30 21.5 63 53 40 76.7 20 17.5 9.5 60 20 M5*16 30 33.86 0.4 2.21
    PQW20HA 40 91.4 35.7 42.31 0.52 2.21
    PQHW25CA 36 23.5 70 57 45 83.4 23 22 11 60 20 M6*20 41.9 48.75 0.59 3.21
    PQHW25HA 45 104 50.61 60.94 0.8 3.21
    PQHW30CA 42 31 90 72 52 97.4 28 26 14 80 20 M8*25 58.26 66.34 1.09 4.47
    PQHW30HA 52 120.4 70.32 88.45 1.44 4.47
    PQRW35CA 48 33 100 82 62 113.6 34 29 14 80 20 M8*25 78.89 86.66 1.56 6.3
    PQRW35HA 62 139.4 95.23 115.55 2.06 6.3
    PQRW45CA 60 37.5 120 100 80 139.4 45 38 20 105 22.5 M12*35 119.4 135.42 2.79 10.41
    PQRW45HA 80 171.2 144.13 180.56 3.69 10.41
    Model Dimensions of Assembly (mm) Block size (mm) Dimensions of Rail (mm) Mounting bolt size for rail Basic dynamic load rating Basic static load rating weight
    Block Rail
    H N W B C L WR  HR  D   P   E   mm C (kN) C0(kN) kg Kg/m
    PQHW15CC 24 16 47 38 30 61.4 15 15 7.5 60 20 M4*16 17.94 19.86 0.17 1.45
    PQHW20CC 30 21.5 63 53 40 76.7 20 17.5 9.5 60 20 M5*16 30 33.86 0.4 2.21
    PQW20HC 40 91.4 35.7 42.31 0.52 2.21
    PQHW25CC 36 23.5 70 57 45 83.4 23 22 11 60 20 M6*20 41.9 48.75 0.59 3.21
    PQHW25HC 45 104 50.61 60.94 0.8 3.21
    PQHW30CC 42 31 90 72 52 97.4 28 26 14 80 20 M8*25 58.26 66.34 1.09 4.47
    PQHW30HC 52 120.4 70.32 88.45 1.44 4.47
    PQRW35CC 48 33 100 82 62 113.6 34 29 14 80 20 M8*25 78.89 86.66 1.56 6.3
    PQRW35HC 62 139.4 95.23 115.55 2.06 6.3
    PQRW45CC 60 37.5 120 100 80 139.4 45 38 20 105 22.5 M12*35 119.4 135.42 2.79 10.41
    PQRW45HC 80 171.2 144.13 180.56 3.69 10.41
    Odering Tips

    1. Before placing order, welcome to send us inquiry, to describe simply your requirements;

    2. Normal length of linear guideway from 1000mm to 6000mm, but we accept custom-made length;

    3. Block color is silver and black, if you need custom color, such as red, green, blue, this is available;

    4. We receive small MOQ and sample for quality test;

    5. If you want to become our agent, welcome to call us +86 19957316660 or send us email.
