PRGH20/PRGW20 heavy load linear motion roller linear bearing guides rail and block

Short Description:

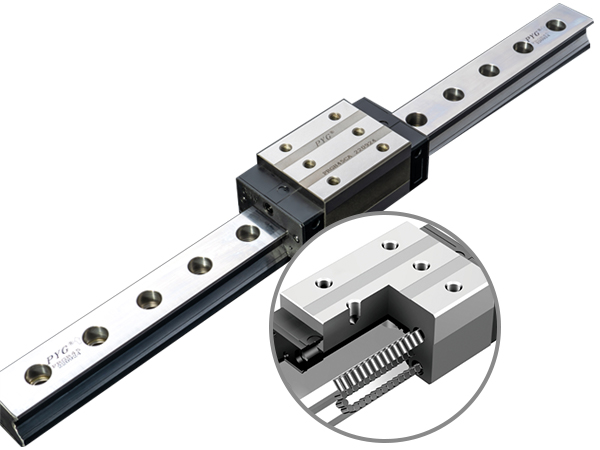

Roller guide rails are different from ball guide rails (see left picture), with the four rows of rollers arrangement at a contact angle of 45-degrees, the PRG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions.

Brand: PYG

Model Size: 20mm

Rail Material: S55C

Block Material: 20 CRmo

Sample: available

Delivery time: 5-15 days

Precision level: C , H, P, SP, UP

Send email to us Whatsapp

Product Detail

Product Tags

Roller Linear Guide Rail

Roller lm guideways adopts roller as rolling elements instead of steel balls, can offer super high rigidity and very high load capacities, roller bearing slide rails are designed with 45 degree angle of contact which produces small elastic deformation during super high load, bears equal load in all directions and same super high rigidity. So PRG roller guideways can reach super high precision requirements and longer service life.

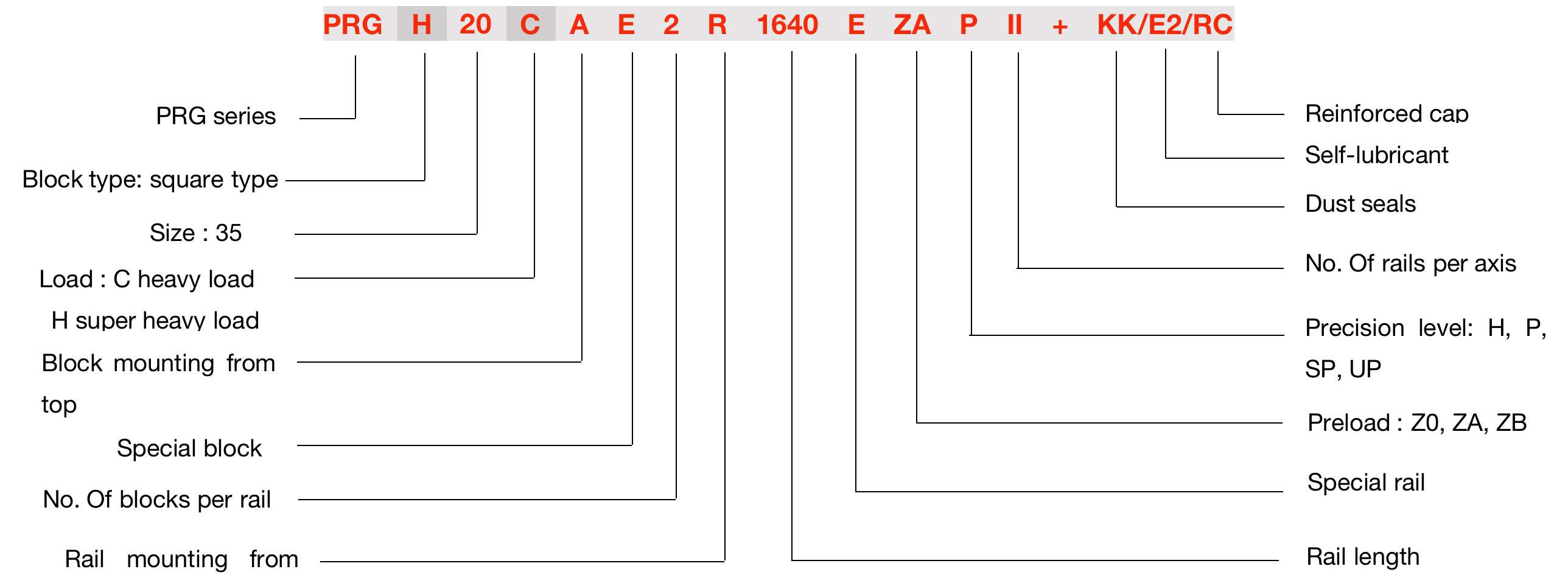

For PRGH-CA / PRGH-HA series linear roller slides, the definition of each code as follows:

size of 20 for example:

PRGH-CA / PRGH-HA block and rail type

Type	Model	Block Shape	Height (mm)		Rail Mounting from Top	Rail Length (mm)
Square block	PRGH-CAPRGH-HA		28 ↓ 48			100 ↓ 4000
Application
Automation systeml Heavy transportation equipment CNC processing machine Heavy cutting machines				CNC Grinding machinesl Injection molding machine Electric discharge machines Big gantry machines

Features

PYG^® brand linear motion details

linear bearing slide block

roller type linear guideway has high heavy load bearing, not easily to deformed,

easy installation

roller linear guide adopts roller arrangement, upgraded load capacity and easy installation.

roller bearing guide rails

square linear bearing adopts high quality bearing steel which is wear resistant, strong rigidity and heavy load bearing.

lm guideways selection

The accuracy of the PRG series can be classified into four classes: high (H), precision (P), super precision (SP) and ultra precision (UP). Customer may choose the class by referencing the accuracy requirements of the applied equipment.

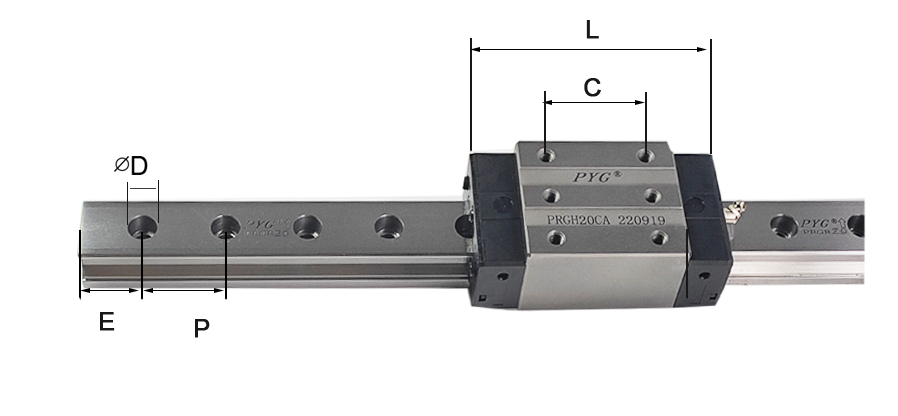

Dimensions

Complete dimensions for all linear roller rail systems size see below table or download our catalog:

Model	Dimensions of Assembly (mm)		Block size (mm)				Dimensions of Rail (mm)					Mounting bolt size for rail	Basic dynamic load rating	Basic static load rating	weight
	Dimensions of Assembly (mm)		Block size (mm)				Dimensions of Rail (mm)					Mounting bolt size for rail	Basic dynamic load rating	Basic static load rating	Block	Rail
	H	N	W	B	C	L	W_R	H_R	D	P	E	mm	C (kN)	C0(kN)	kg	Kg/m
PRGH20CA	34	12	44	32	36	86	20	21	9.5	30	20	M5*20	21.3	46.7	0.4	2.76
PRGH20HA	34	12	44	32	50	106	20	21	9.5	30	20	M5*20	26.9	63	0.53	2.76
PRGW20CC	30	21.5	63	53	35	86	20	21	9.5	30	20	M5*20	21.3	46.7	0.47	1.8
PRGW20HC	30	21.5	63	53	35	106	23	23.6	11	40	20	M5*20	26.9	63	0.63	1.8
