Sharaxaad Gaaban:

Qaabka:PRGH-CA / PRGH-HA

Cabbirka:15, 20, 25, 30, 35, 45, 55, 65

Qalabka tareenka:S55C

Qalabka xannibaadda:20 CRmo

Tusaale:la heli karo

Waqtiga keenista:5-15 maalmood

Heerka saxda ah:C, H, P, SP, UP

Email noogu soo dir Whatsapp

Faahfaahinta Alaabta

Tags Product

Maskaxda ku hay "macmiilka 1-aad, tayada wanaagsan marka hore" maskaxda ku hay, waxaan si dhow ula shaqeynaa rajadayada waxaanan siinaa adeegyo hufan oo xirfad leh oo loogu talagalay hagaha toosan ee sumcadda sare ee PRGH, Qof kasta oo ku xiiseeya shay kasta, hubso inaad si dhab ah u dareemeyso xornimo buuxda nala soo hadal faahfaahin dheeraad ah ama hubi inaad noo soo gudbiso emaylka isla markaaba, waxaanu kuugu soo jawaabi doonaa 24 saac gudahood iyo sidoo kale ugu badnaan

Roller Linear Guide Tareenka

Roller lm guideways qaadashada rullaluistemadka sida curiyeyaasha rogrogmi halkii kubbadaha birta ah, waxay bixin karaan qallafsanaan aad u sarreeya iyo awoodaha culeyska aad u sarreeya, biraha dhejiska leh ee rullalulayda waxaa loogu talagalay xagal 45 darajo xiriir ah kaas oo soo saara qallafsan yar yar inta lagu jiro culeyska sare, wuxuu sido culeys isku mid ah jihooyinka oo dhan iyo isla super adag adag. Markaa dariiqyada rullaluistuadka PRG waxay gaari karaan shuruudaha saxsanaanta sare iyo nolosha adeegga dheer.

Loogu talagalay PRGH-CA / PRGH-HA isliilada toosan ee taxanaha ah, qeexida kood kasta sida soo socota:

Qaado cabbirka 35 tusaale ahaan:

hanuunin toosan

PRGH-CA / PRGH-HA block iyo nooca tareenka

Nooca	Qaabka	Qaabka xannibaadda	Dhererka (mm)		Tareenka oo kor ka soo fuulaya	Dhererka tareenka (mm)
block labajibbaaran	PRGH-CAPRGH-HA		28 ↓ 90			100 ↓ 4000
Codsiga
Automation systeml Qalabka gaadiidka culus Mashiinka farsamaynta CNC Mashiinnada wax lagu gooyo ee culus				Mashiinnada wax lagu shiilo ee CNC Mashiinnada dareeraha korontada Mashiinnada gantry weyn

Astaamaha

PYG^®faahfaahinta dhaqdhaqaaqa toosan sumadda

block toosan

block slide slide ah sida toosan

Jidka toosan ee nooca rullaluistu wuxuu leeyahay rar culus, oo aan si fudud u qalloocin,

hanuunin toosan

rakibaadda fudud

Hagaha toosan ee rullaluistuistu wuxuu qaataa habaynta rullaluistu, awoodda rarka oo la cusboonaysiiyay iyo rakibid fudud.

rullaluistemadka toosan hagaha

biraha hagaha rullaluleyda

xadhkaha toosan ee labajibbaaran wuxuu qaataa birta sidata oo tayadeedu sarayso kaas oo xidhan adkaysi u adkaysta, qallafsanaan xoog leh iyo qaadis culus.

lm guideways xulashada

Marka la eego ra'yiga macaamiisha, dooro habka ugu wanaagsan ee LM waxay u baahan yihiin inay tixgeliyaan arrimo badan, sida haddii warshadda, ay sii wadi karto bixinta waqtiga, haddii ay la socon karto habka hababka toosan, iyo adeegga iwm. I rumayso, kama qoomamayn doontid inaad doorato PYG .

Cabirka

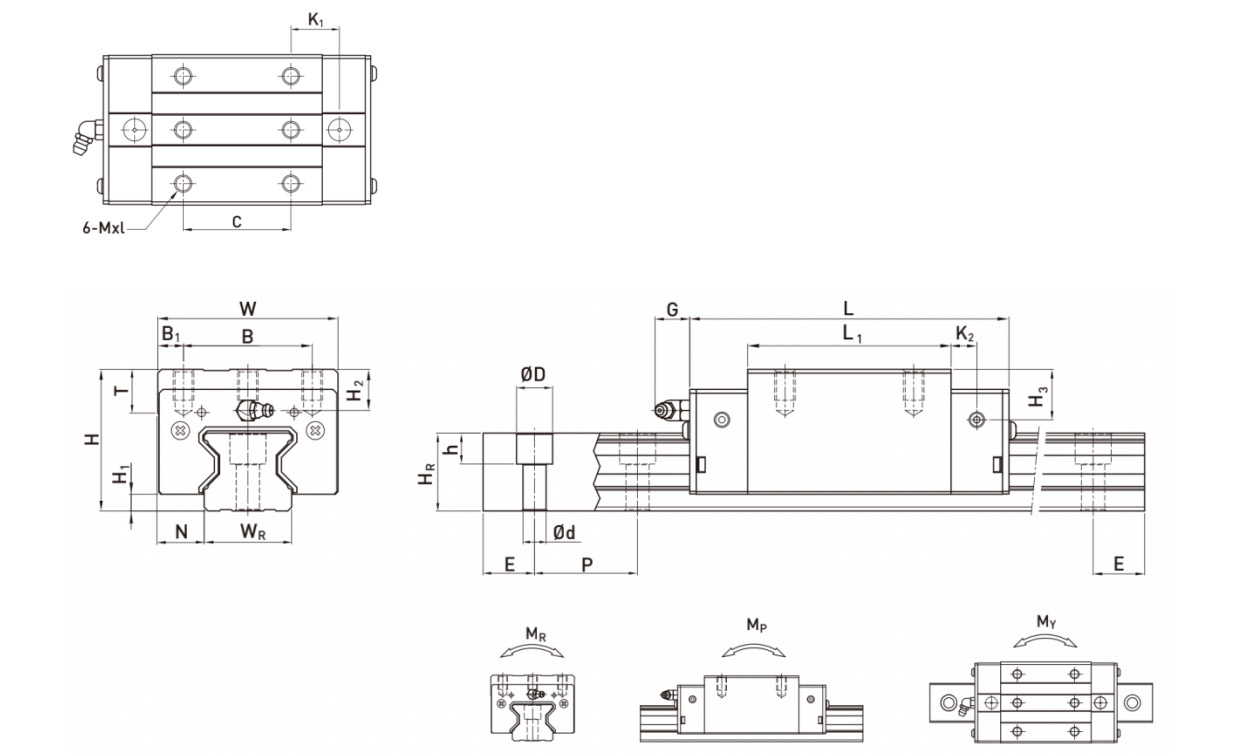

Cabbirrada oo dhammaystiran ee dhammaan cabbirka nidaamyada tareenada toosan ee rullaluistuyada ah ka eeg shaxda hoose ama soo deji buug-yarahayada:

Qaabka	Cabirka Golaha (mm)			Cabirka Block (mm)													Cabirka Tareenka (mm)							Koritaanka cabbirka boodhka ee tareenka	Qiimaynta culeyska firfircoon ee aasaasiga ah	Qiimaynta culeyska aasaasiga ah ee taagan	La ogol yahay daqiiqad la qiimeeyay taagan			miisaanka
																											MR	MP	MY	Block	Tareen
	H	H1	N	W	B	B1	C	L1	L	K1	K2	G	Mxl	T	H2	H3	WR	HR	D	h	d	P	E	mm	C (kN)	C0 (kN)	kN-m	kN-m	kN-m	kg	Kg/m
PRGH15CA	28	4	9.5	34	26	4	26	45	68	13.4	4.7	5.3	M4*8	6	7.6	10.1	15	16.5	7.5	5.7	4.5	30	20	M4*16	11.3	24	0.311	0.173	0.173	0.2	1.8
PRGH20CA	34	5	12	44	32	6	36	57.5	86	15.8	6	5.3	M5*8	8	8.3	8.3	20	21	9.5	8.5	6	30	20	M5*20	21.3	46.7	0.647	0.46	0.46	0.4	2.76
PRGH20HA							50	77.5	106	18.8															26.9	63	0.872	0.837	0.837	0.53
PRGH25CA	40	5.5	12.5	48	35	6.5	35	64.5	97.9	20.75	7.25	12	M6*8	9.5	10.2	10	23	23.6	11	9	7	30	20	M6*20	27.7	57.1	0.758	0.605	0.605	0.61	3.08
PRGH25HA							50	81	114.4	21.5															33.9	73.4	0.975	0.991	0.991	0.75
PRGH30CA	45	6	16	60	40	10	40	71	109.8	23.5	8	12	M8*10	9.5	9.5	10.3	28	28	14	12	9	40	20	M8*25	39.1	82.1	1.445	1.06	1.06	0.9	4.41
PRGH30HA							60	93	131.8	24.5															48.1	105	1.846	1.712	1.712	1.16
PRGH35CA	55	6.5	18	70	50	10	50	79	124	22.5	10	12	M8*12	12	16	19.6	34	30.2	14	12	9	40	20	M8*25	57.9	105.2	2.17	1.44	1.44	1.57	6.06
PRGH35HA							72	106.5	151.5	25.25															73.1	142	2.93	2.6	2.6	2.06
PRGH45CA	70	8	20.5	86	60	13	60	106	153.2	31	10	12.9	M10*17	16	20	24	45	38	20	17	14	52.5	22.5	M12*35	92.6	178.8	4.52	3.05	3.05	3.18	9.97
PRGH45HA							80	139.8	187	37.9															116	230.9	6.33	5.47	5.47	4.13
PRGH55CA	80	10	23.5	100	75	12.5	75	125.5	183.7	37.75	12.5	12.9	M12*18	17.5	22	27.5	53	44	23	20	16	60	30	M14*45	130.5	252	8.01	5.4	5.4	4.89	13.98
PRGH55HA							95	173.8	232	51.9															167.8	348	11.15	10.25	10.25	6.68
PRGH65CA	90	12	31.5	126	76	25	70	160	232	60.8	15.8	12.9	M16*20	25	15	15	63	53	26	22	18	75	35	M16*50	213	411.6	16.2	11.59	11.59	8.89	20.22
PRGH65HA							120	223	295	67.3															275.3	572.7	22.55	22.17	22.17	12.13
