Top Grade Elliptic Flange PYG Series Linear Motion Ball Bearing Slide

Short Description:

Long linear blocks feature a sleek and compact design that maximizes efficiency and optimizes the use of available space. With its long slider, it offers longer travel distances, allowing for greater distances of seamless motion without compromising precision. This innovative design also minimizes friction and noise, ensuring quiet, friction-free operation for an enhanced user experience.


  • Brand: PYG
  • Rail length: can be customized
  • Block Material: 20 CRmo
  • Sample: Available
  • Delivery time: 5-15 days
  • Precision level: C , H, P, SP, UP
  • Product Detail

    Product Tags

    It adheres into the tenet “Honest, industrious, enterprising, innovative” to create new merchandise regularly. It regards prospects, success as its very own success. Let us develop prosperous future hand in hand for Top Grade Elliptic Flange PYG Series Linear Motion Ball Bearing Slide, Your inquiry are going to be highly welcomed plus a win-win prosperous development are what we are expecting.
    It adheres into the tenet “Honest, industrious, enterprising, innovative” to create new merchandise regularly. It regards prospects, success as its very own success. Let us develop prosperous future hand in hand for China PYG Linear Bearing and Linear Profile Bearings, The president and all the company members would like to provide professional products and services for customers and sincerely welcome and cooperate with all native and foreign customers for a bright future.

    Long linear guide block

    1. Linear guide rail is one of the basic components in machine tool machinery, which is widely used in various types of CNC machine tools, machining centers and other automation equipment.Due to its linear motion characteristics, it can be easily applied to various precision machinery and instruments, such as coordinate measuring machines and altimeters, microscopes, etc.

    2. Due to the high motion accuracy of linear slider, it is widely used in CNC lathes, milling machines and other high-tech filed of automatic processing equipment;

    3.  Due to the use of linear motion system, it can improve production efficiency and reduce labor intensity;

    4. Based on some special working conditions, the slider can also be divided into standard type and extended type.

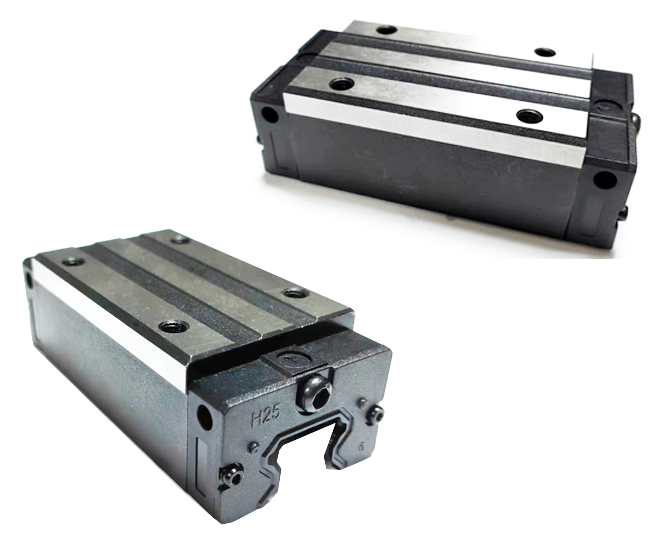

    lengthened type linear guide

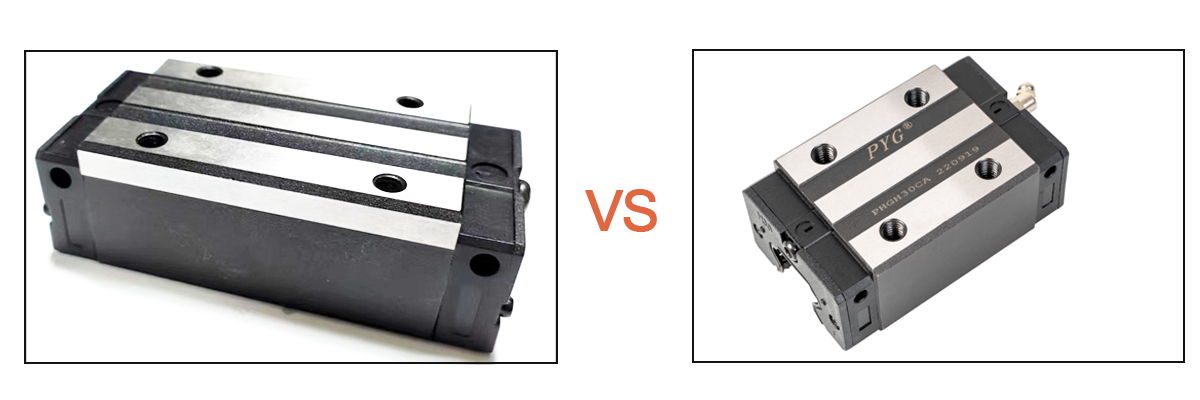

    PHG series: Comparison of  long  linear guide block and standard length linear guide block

    linear guide 3

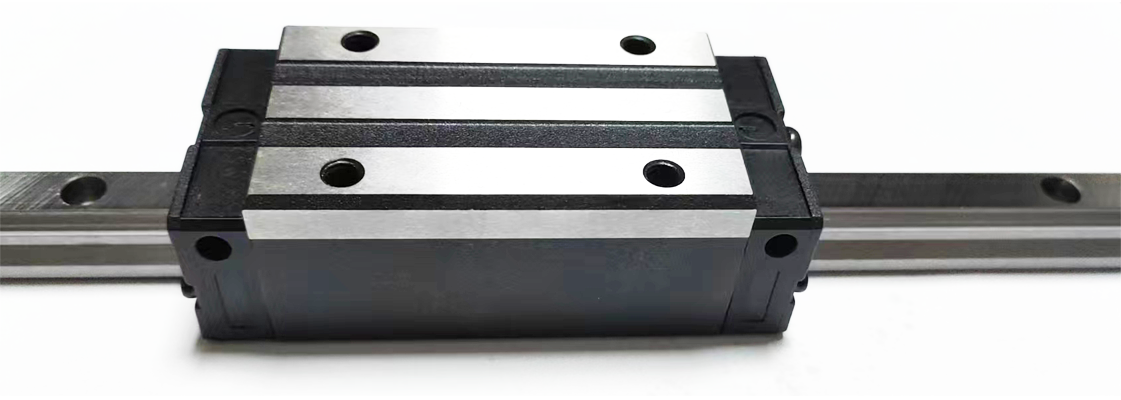

    PHG series: square type and long linear guide block PHGH25HA with PHGR25 linear rail

    railand linear block

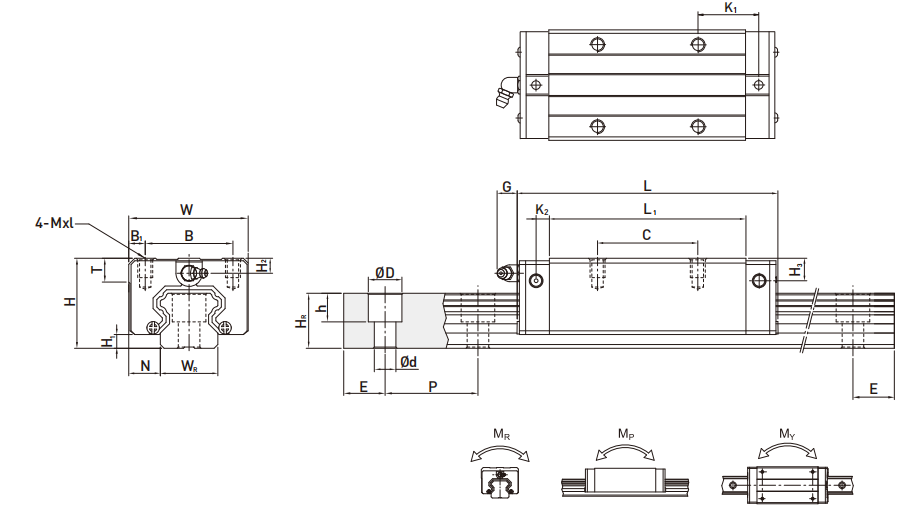

    linear guide drawing

    Complete dimensions for standard  linear guide rails as follows:

    Model Dimensions of Assembly (mm) Block size (mm) Dimensions of Rail (mm) Mounting bolt size for rail Basic dynamic load rating Basic static load rating Allowable static rated moment weight
    MR MP MY Block Rail
    H H1 N W B B1 C L1 L G Mxl T H2 H3 WR HR D h d P E mm C (kN) C0(kN) kN-m kN-m kN-m kg Kg/m
    PHGH15CA 28 4.3 9.5 34 26 4 26 39.4 61.4 5.3 M4*5 6 8.5 9.5 15 15 7.5 5.3 4.5 60 20 M4*16 11.38 16.97 0.12 0.1 0.1 0.18 1.45
    PHGH20CA 30 4.6 12 44 32 6 36 50.5 77.5 12 M5*6 8 6 7 20 17.5 9.5 8.5 6 60 20 M5*16 17.75 27.76 0.27 0.2 0.2 0.3 2.21
    PHGH20HA 50 65.2 92.2 21.18 35.9 0.35 0.35 0.35 0.39
    PHGH25CA 40 5.5 12.5 48 35 6.5 35 58 84 12 M6*8 8 10 13 23 22 11 9 7 60 20 M6*20 26.48 36.49 0.42 0.33 0.33 0.51 3.21
    PHGH25HA 50 78.6 104.6 32.75 49.44 0.56 0.57 0.57 0.69
    PHGH30CA 45 6 16 60 40 10 40 70 97.4 12 M8*10 8.5 9.5 13.8 28 26 14 12 9 80 20 M8*25 38.74 52.19 0.66 0.53 0.53 0.88 4.47
    PHGH30HA 60 93 120.4 47.27 69.16 0.88 0.92 0.92 1.16
    PHGH35CA 55 7.5 18 70 50 10 50 80 112.4 12 M8*12 10.2 16 19.6 34 29 14 12 9 80 20 M8*25 49.52 69.16 1.16 0.81 0.81 1.45 6.3
    PHGH35HA 72 105.8 138.2 60.21 91.63 1.54 1.4 1.4 1.92

    Note

    If you need the elongated slider, please tell us the length you need when purchasing.It adheres into the tenet “Honest, industrious, enterprising, innovative” to create new merchandise regularly. It regards prospects, success as its very own success. Let us develop prosperous future hand in hand for Top Grade Elliptic Flange PYG Series Linear Motion Ball Bearing Slide Long Block Type, Your inquiry are going to be highly welcomed plus a win-win prosperous development are what we are expecting.
    Top Grade China Lmf12uu Linear Bearing and Linear Profile Bearings, The president and all the company members would like to provide professional products and services for customers and sincerely welcome and cooperate with all native and foreign customers for a bright future.
